Locate Trapped Hydrocarbon before you start to drill Oil & Gas wells

Portable IPDS Seismic IPDS ^{infra sonic passive Differential Spectroscopy}

Light sensors locating
Trapped fluids, differentiating
HC from water

Ultra-Sensitive Oil Seismometer
30,000 – 120,000 V sec/m
18 kg
Linear Frequnce Band 0.1- 40 Hz
Electrodynamic
Inverse loop Magnetic System
Self Calibrating

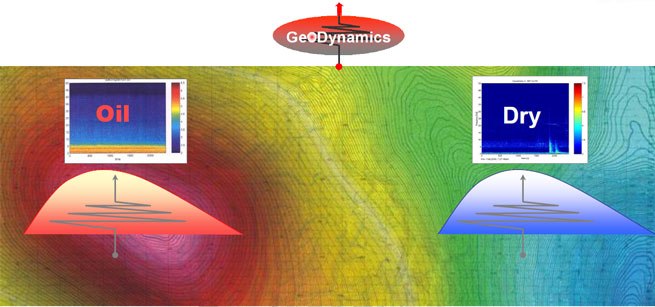

Ranges of Field Measurement environment varieties

Hydrocarbon & Dry Reservoir

When Earth Hydrocarbon are Talking,
GeoDynamics IPDS sensors are Listening

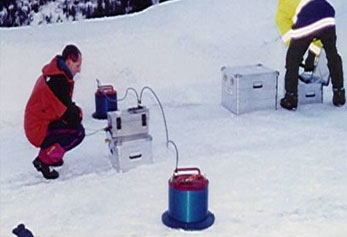

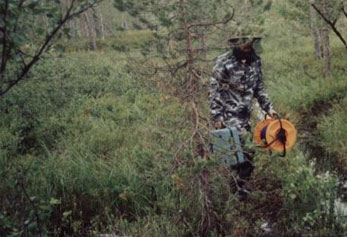

Exploration, Remote Area

• IPDSis ideal for the preliminary exploration of areas of promising potential.
• Further and more detailed surveys (with integration of different data) may be carried out, once the area of interest has been targeted.

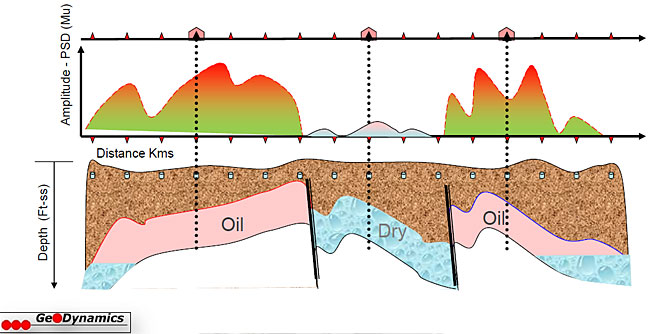

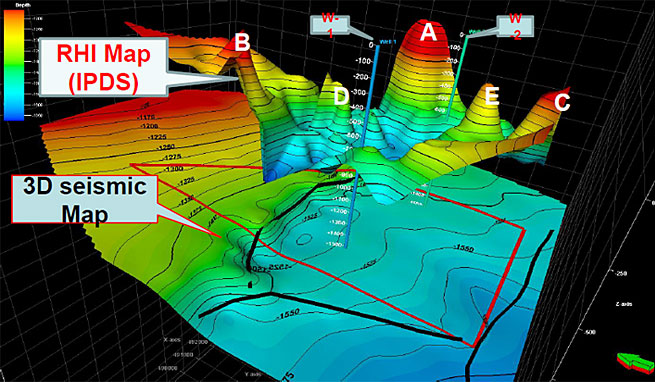

Hydrocarbon Detection Correlation Profile with Well Measurements

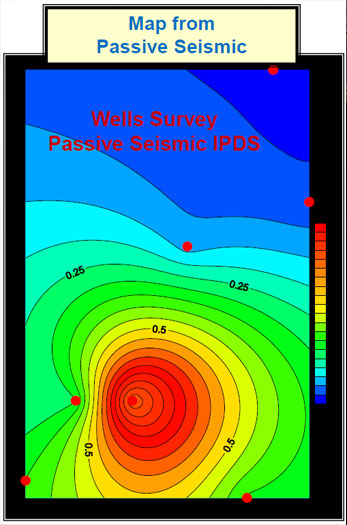

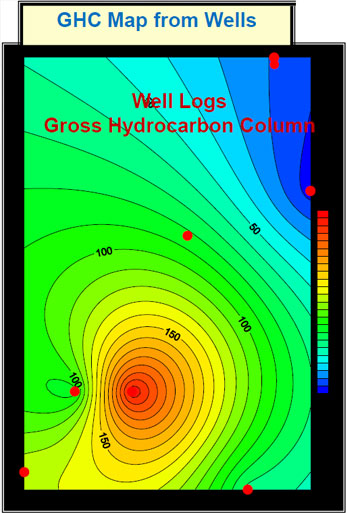

Correlation Between IPDS wells survey &
Hydrocarbon Saturation from wells log maps

Technical Features

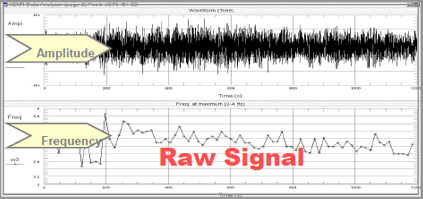

• Detecting and recording natural acoustic signal (Passive method).
• It is micro-seismic acoustic spectroscopy -low frequency characteristic.
• The Sensor has very high sensitivity and build in-house.
• Mainly detects hydrocarbon fluids (Gas & Oil) in porous media.
• It is not related to type of rock or lithology.
• It determines Hydrocarbon pool area and net thickness.

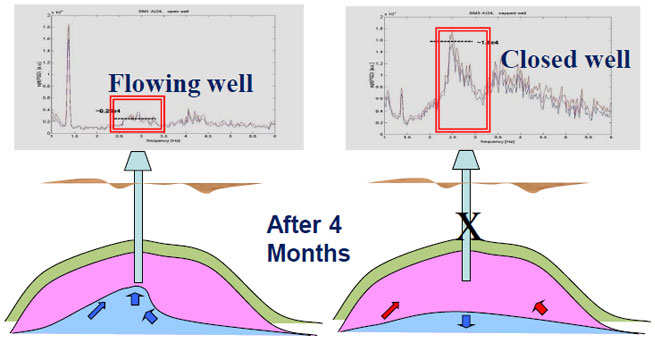

• Very useful for Reservoir monitoring
