To the future of drilling

Engineered from the ground up, Synergy Series PDC drill bits incorporate the latest advances in downhole physics, including:

Compact, single steel body
Engineered and manufactured via computerized design and CNC milling ensures precision and consistency

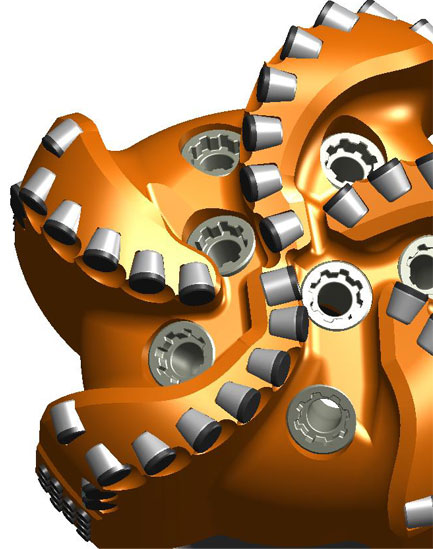

Physics-Balanced cutting model
Unique converging spiral design and non-symmetrical model provides maximum cut, steerability, and durability

Gauge control & backream support
Enhanced gauge protection with optional backream capability and protection

To the future of drilling

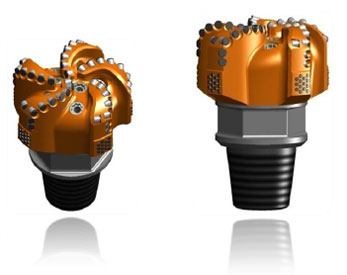

Synergy series PDC bits are available in most sizes:

Most Common

• 159 mm | 6.250 in
• 216 mm | 8.500 in
• 222 mm | 8.750 in
• 311 mm | 12.250 in

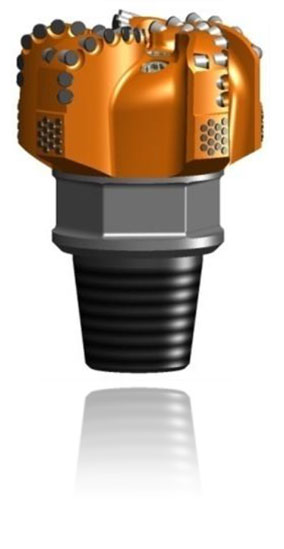

specifications.^{8.75"technical}

design profile junk slot area gauge length gauge protection make-up length overall length bit connection fishing neck

111 cm2(17.25 in2) 78.7 mm (3.10 in) Fused Carbide & Diamond 206.6 mm (8.14 in) 303.5 mm (11.95 in) 4.500" API Regular 152.4 mm (6.000 in)
